AMICUS - SERIE 600

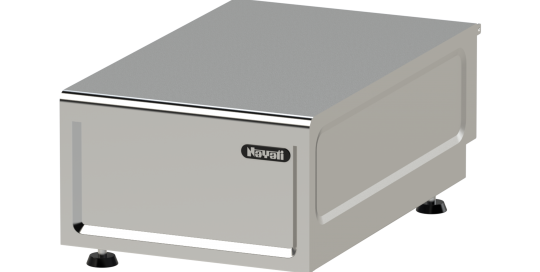

MODEL
NNWC 4-60 AM

Dimension: L x D x H
380 x 600 x 260 mm

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Adjustable feet

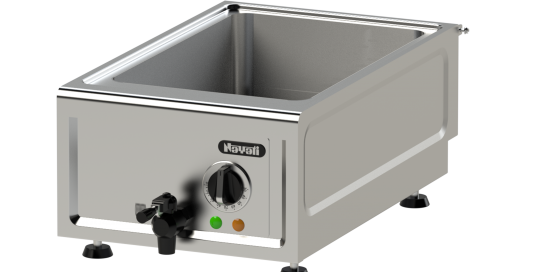

MODEL
NEPC 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260 mm

Electric Power
3.6 kW
230V / 1+N / 50-60 Hz

Cooking Surface
310 x 470 mm

Temperature
30° – 110°C

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Tank made of stainless steel 316 which can withstand salt and acid
Fully welded tank for […]

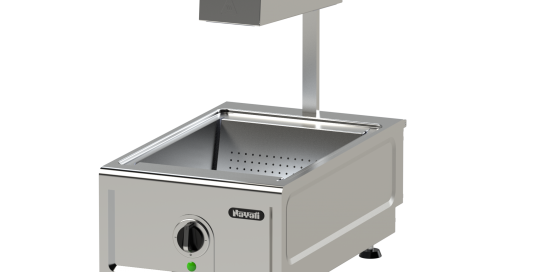

MODEL
NEFW 4-60 AM

1 zone de chauffe

Dimension: L x D x H
380 x 600 x 260/590 mm

Electric Power
1 kW
230V / 1+N / 50-60 Hz

Cooking Surface
310 x 510 mm

Temperature
30° – 90°C

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Infrared heater for keeping warm
Fully welded GN 1/1 tank for ease of cleaning
Salting […]

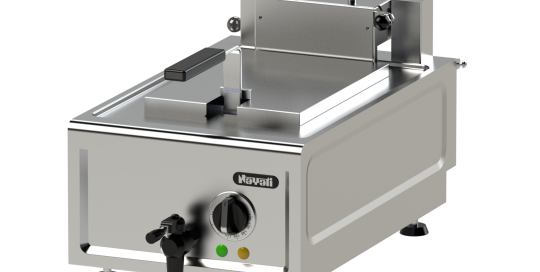

MODEL
NEFC 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260/390 mm

Electric Power
6 kW
400V / 3+N / 50-60 Hz

Cooking Surface
220 x 320 mm

Temperature

120° – 190°C

Capacity

7 Liters

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Movable heater of 6 kW
Drain outlet on the front panel
Tank with capacity of […]

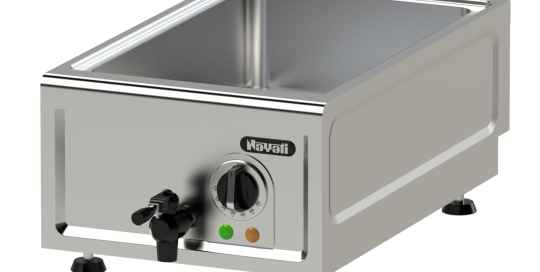

MODEL
NEBM 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260 mm

Electric Power
3 kW
230V / 1+N / 50-60 Hz

Cooking Surface
310 x 510 mm

Temperature
30° – 90°C

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Heater of 3 kW
Drain outlet on the front panel
Manual refill of water in the […]

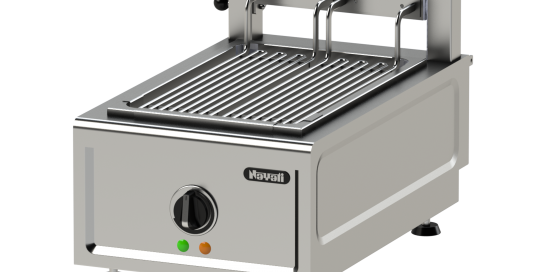

MODEL
NEVG 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260/360 mm

Electric Power
3.2 kW
230V / 1+N / 50-60 Hz

Cooking Surface
250 x 410 mm

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Movable heaters of 1.6 kW each
Basin for vapor grilling
Certified IPX4 protection
Adjustable feet

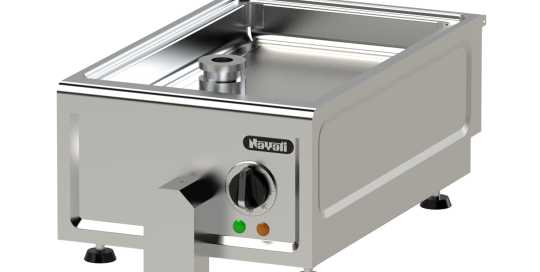

MODEL
NEGP 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260/291 mm

Electric Power
3.9 kW
230V / 1+N / 50-60 Hz

Cooking Surface
310 x 510 mm

Temperature
50° – 250°C

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Griddle plate made of stainless steel 420, 16 mm thickness
Fully welded griddle plate for maximum […]

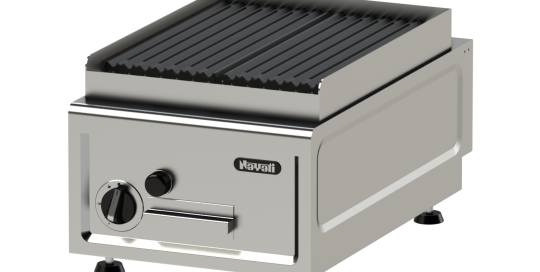

MODEL
NGCB 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260/320 mm

Gas Power
7 kW

Cooking Surface

360 x 425 mm

Ignition
Piezo

Execution in stainless steel AISI 304
Top and sides 1.2 mm thickness
Cast iron griddle removable
1 tubular burner in stainless steel of 7 kW
Drainage opening with waste collection drawer
Safety pilot flame […]

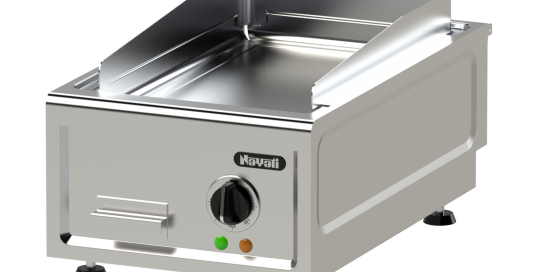

MODEL
NEFT 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260/307 mm

Electric Power

3.9 kW
230V / 1+N / 50-60 Hz

Cooking Surface
310 x 510 mm

Temperature

50° – 250°C

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Griddle plate made of stainless steel 420, 16 mm thickness
Fully welded griddle plate for maximum […]

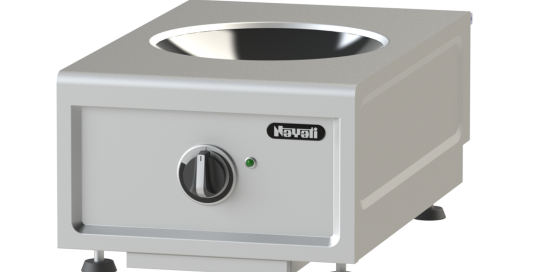

MODEL
NEWI 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260 mm

Electric Power
3.5 kW
230V / 1+N / 50-60 Hz

Wok Diameter

Ø 290 mm

Execution in stainless steel AISI 304
Top and sides 1.2 mm thickness
Induction glass – 6 mm thick
Pan detection system for better efficiency
Certified IPX4 protection
Adjustable feet

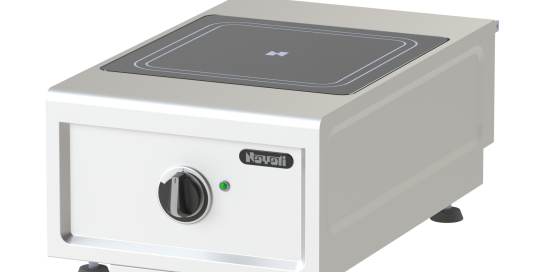

MODELE
NEFI 1 4-60 AM

1 heating zone

Dimension: L x D x H
380 x 600 x 260 mm

Electric Power
3.5 kW
230V / 1+N / 50-60 Hz

Cooking Surface
350 x 350 mm

Execution in stainless steel AISI 304
Top and sides 1.2 mm thickness
Induction glass – 6 mm thick
Pan detection system for better efficiency
Certified IPX4 protection
Adjustable […]

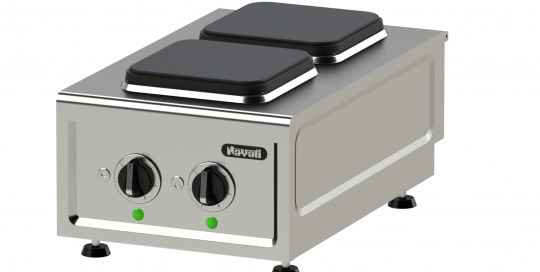

MODEL
NEHP 4-60 AM

2 heating zone

Dimension: L x D x H
380 x 600 x 260/290 mm

Electric Power

2 x 2.6 kW
400V / 3+N / 50-60 Hz

Cooking Surface

2 x (220 x 220 mm)

Temperature
6 niveaux

Execution in stainless steel AISI 304
Top and sides 1.2 mm thickness
Cast iron plate
2 heaters of 2.6 kW each
Adjustable feet

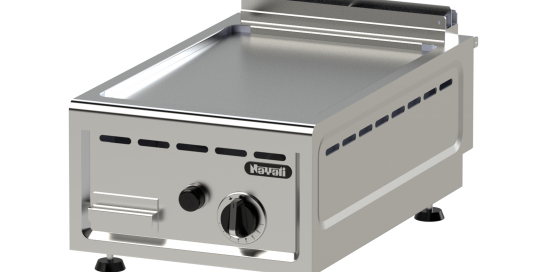

MODEL
NGFT 4-60 AM


1 heating zone

Dimension: L x D x H
380 x 600 x 260/307 mm

Gas Power

6 kW

Cooking Surface

330 x 480 mm

Ignition

Piezo

Execution in stainless steel 304
Top and sides 1.2 mm thickness
Griddle plate made of stainless steel 420, 16 mm thickness
Fully welded griddle plate for maximum hygiene
1 burner of 6 kW
Drainage […]

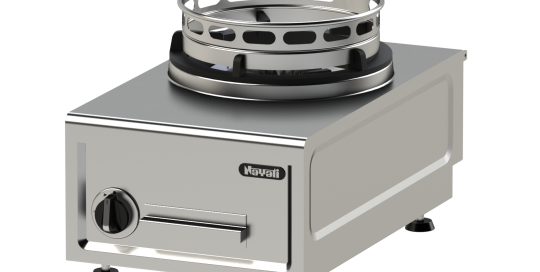

MODEL
NGWT 3-55/AM


1 burner

Dimension: L x D x H
380 x 600 x 260/322 mm

Power Natural Gas

1 x 13 kW

Power Liquid Gas

1 x 11.5 kW

Ignition

Manual

Execution in stainless steel AISI 304
Top and side 1.2 mm thickness
Cast iron burner of Ø 180 mm
Strong cast iron pot holder of Ø 280 mm
Removable stainless steel wokring […]

MODEL
NGOB 1 4-60 AM
NGOB 4-60 AM

1 burner

2 burners

Dimension: L x D x H
380 x 600 x 260/290 mm
380 x 600 x 260/290 mm

Gas Power

1 x 7.5 kW
2 x 3.5 kW

Griddle dimension

370 x 540 mm
370 x 540 mm

Ignition

Manuel
Manuel

Execution in stainless steel AISI 304
Top and sides 1.2 mm thickness
Atmospheric burner
Safety pilot flame and […]
